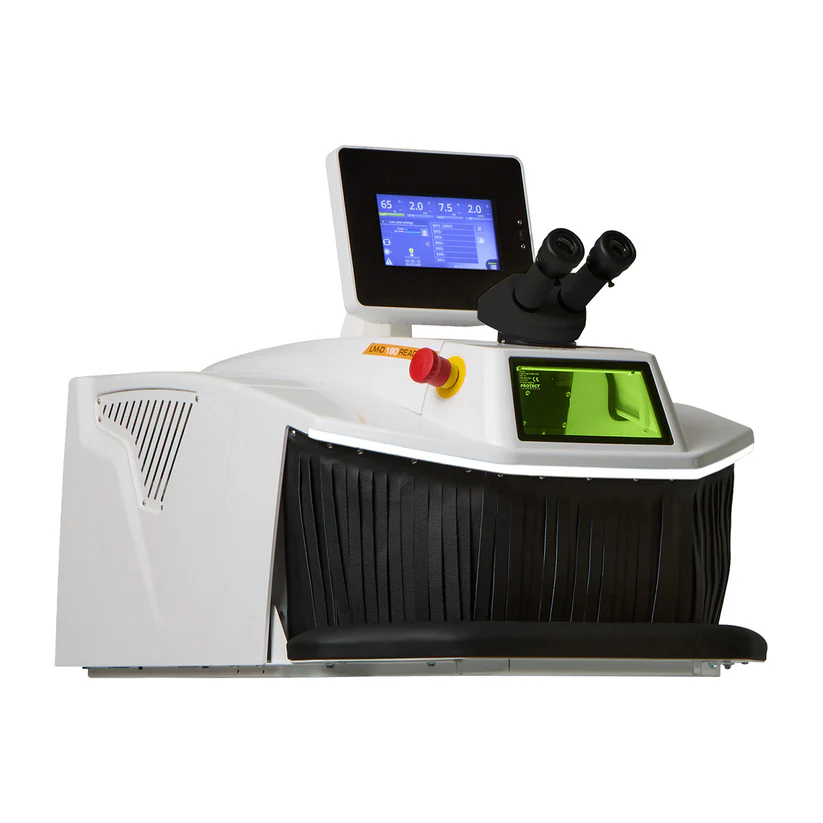

Desktop laser welding system designed for high precision processing of precious metals. Equipped with a wide, flexible entry point; 10X microscope optics with a 7" display screen and is argon ready. Includes a water-air cooling system and both air and argon connections. Average power 65 W, max pulse energy of 190 Joules, peak power 7.5 kW. Warranty 24 months or 20 million shots on the lamp, 36 months on the balance of the machine. All consumables are not included in the guarantee. Also available in a 230 joule version.
Key Features of the LM-D Ready 190 Flex Welder:
- Easy access to the working chamber
- Full 7" Touchscreen
- 10X Stereo microscope with optical protection
- Spot diameter 0.2-2 mm
- Smart Spot technology maintains stable energy output delivering identical welds from the first pulse to the last
- Pulse duration 0.5-25 ms
- Adjustable white LED light allows easy modifications to improve clarity or reduce glare
- Quick setting of welding parameters by means of the multifunctional mouse - can save up to 250 for future use
- USB Connection / Ethernet / TeamViewer included to simplify and allow remote diagnostic capability
This LM-D Ready welder comes complete with:
- A water-air cooling system
- Both air and argon connections
| Brand | Sisma |
| Country of Origin | Italy |
| Dimension | 23.6"W x 33" D x 24"H |
| Dimensions | 23.6"W x 33" D x 24"H |
| Electrical | 230V, 1 Ph, 12A, 50/60Hz |
| Laser Power | 65W |
| Laser Source Type | Nd: YAG |
| Max Pulse Energy | 190J |
| Model | LM-D Ready |
| Pulse Duration | 25ms |
| Pulse Frequency | 0.55-50Hz |
| Smart Spot Tech | Yes |
| Warranty Term | 3 Year |
