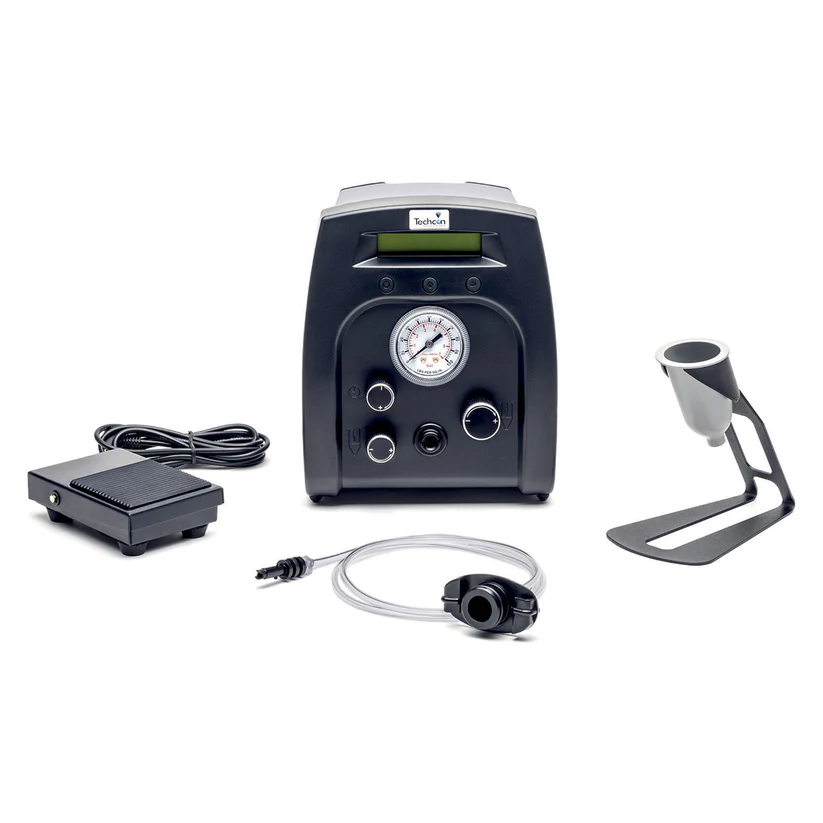

Use the Digital Dispensing System 100 with either Luxart® or HyCeram® products. Using this pneumatic system allows both an easy and a precise application of the colors to your workpieces. Hook the color of your choice (no colors are included) to the 5ml cartridge adaptor. Consider purchasing additional cartridge adaptors (821-3921) for 5ml syringes so you can have additional colors preloaded and ready to use. Requires an air compressor capable of producing 100psi (6.9 bar).
Specifications:
Size: 152x165x178mm (6” x 6.5” x 7.0”)
Weight: 100 = 1.2 kg (2.6lbs)
Input Voltage: 24VDC
Rated Power: 10W
Air Input: 100 psi (6.9 bars) max.
Indoor Use: Altitude up to 2,000m (6,562 feet)
Operating Temperature: 0˚C to 50˚C (32˚F to 122˚F)
Storage Temperature: -10˚C to 60˚C (14˚F to 140˚F)
Max. Relative Humidity: 80% for temperature up to 31˚C (87.8˚F)
Decreasing linearly to 50% relative humidity at 40˚C (104˚F)
Air Output: 0-100 psi (0-6.9 bars)
Vacuum: 406mm (16”) of Hg
Timer: 0.008 - 99.999 seconds
Cycle Mode: Continue, Interrupt, Purge
Timing Repeat Tolerance: +/- 0.001%
Cycle Rate: 600 cycles/min
LCD: 16 X 2 display segments
Instruction Manual
