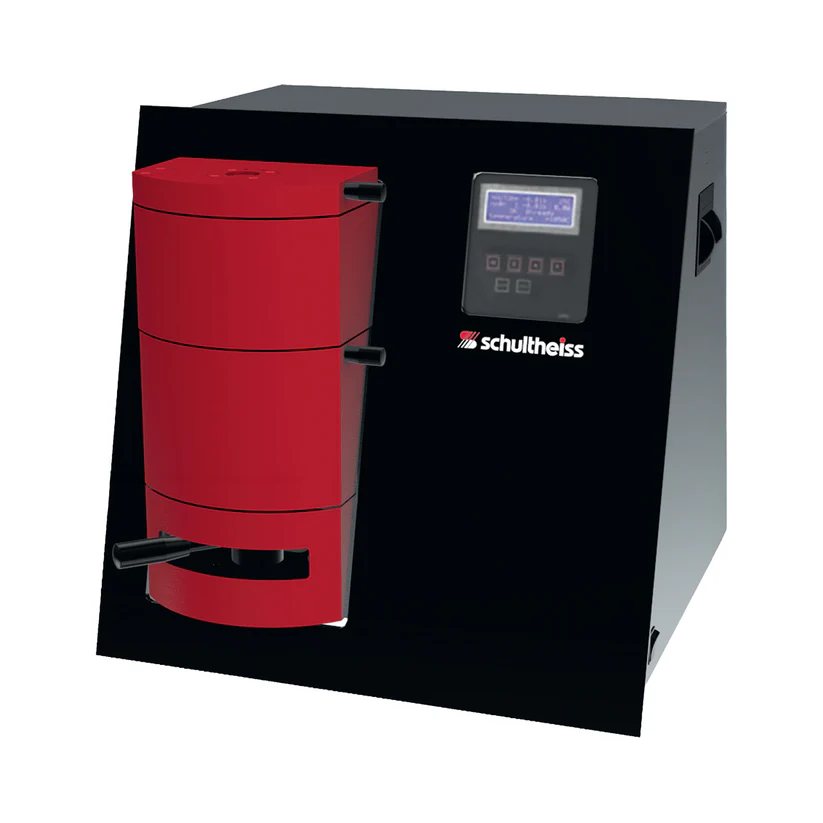

The Schultheiss VPC 040 is a compact vacuum pressure casting machine designed for goldsmiths, laboratories, and small-volume jewelry manufacturers. It delivers reliable production-grade performance in a space-saving system with excellent efficiency and reduced material loss. Featuring integrated vacuum and overpressure technology, a programmable 12-step casting process, and inductive power mixing for superior alloy homogeneity, the VPC 040 produces consistent, high-quality castings with short cycle times and gentle melting. A flanged flask is required for proper operation with this machine.
Key Benefits
- Compact design ideal for small to medium production runs
- Integrated vacuum and overpressure for rapid casting cycles
- Programmable 12-step casting process with one-button control
- Inductive power mixing for excellent alloy homogeneity
- Short heating cycles for faster and gentler melting
- Reduced material loss for lower cost per cast
Technical Specifications
| Specification | Details |
|---|
| Machine Dimensions (W × D × H) | 20"×23"×22" (500×580×560 mm) |
| Casting Capacity (18K Gold) | 500 g |
| Casting Capacity (Silver) | 300 g |
| Max Temperature | 2,912 °F | 1,600 °C (S-Type) / 2,642 °F | 1,450 °C (Crucible) |
| Max Flask Size | 3.9" × 4.7" (100 × 120 mm) |
| Electrical | 230V, 1 Ph |
| Control | Automatic one-button program with 12-step casting process |
Note: For optimal performance, we recommend pairing with the 20 m³ Vacuum Pump (sold separately).
| Brand | Schultheiss |
| Country of Origin | Germany |
| Dimensions | 20" × 23" × 22" (500 × 580 × 560 mm) |
| Electrical | 3.5 kW, 230V, 1 Ph |
| Warranty Term | 1 Year Limited |
