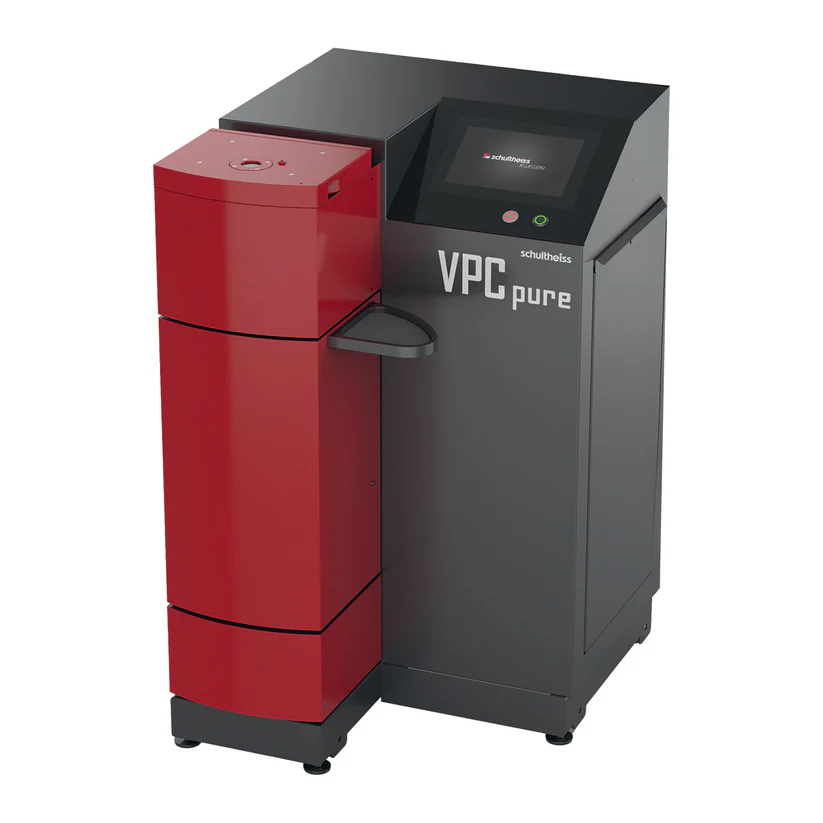

The Schultheiss VPC Pure is a German-engineered vacuum pressure casting machine designed for goldsmiths and jewelry manufacturers. It combines a large intuitive touch-screen interface, a redesigned centric melting chamber, and fully automatic one-button casting for reliable, high-quality results.
The VPC Pure excels at producing intricate filigree, wire designs, and delicate pieces with smooth surfaces and excellent detail.
Key Benefits
- Ideal for filigree and lightweight jewelry production
- Fast casting cycles with short solidification times
- Intelligent induction heating adapts perfectly to gold, silver, and palladium-white-gold alloys
- Fully automatic operation with programmable casting programs
- Remote monitoring and program exchange via IP connection
- Advanced vacuum pressure casting technology with centric crucible design
Technical Specifications
| Specification | Details |
|---|
| Machine Dimensions (W x D x H) | 30" x 34" x 44" (750 x 860 x 1,100 mm) |
| Maximum Capacity (18K Gold) | 2,500 g |
| Maximum Capacity (Silver) | 1,600 g |
| Max Temperature | 2,912°F | 1,600 °C (S-Type) / 2,642°F | 1,450°C (Crucible) |
| Max Flask Size | 5.1" x 11.8" (130 x 300mm) |
| Max Casting Pressure | 45 Psi (3 bar) |
| Electrical | 230V, 3 Ph, 50/60 Hz |
| Control | Large color touch-screen with memory for multiple programs; one-button automatic operation |
| Brand | Schultheiss |
| Country of Origin | Germany |
| Electrical | 230V, 3 Ph, 50/60 Hz |
| Warranty Term | 1 Year Limited |
